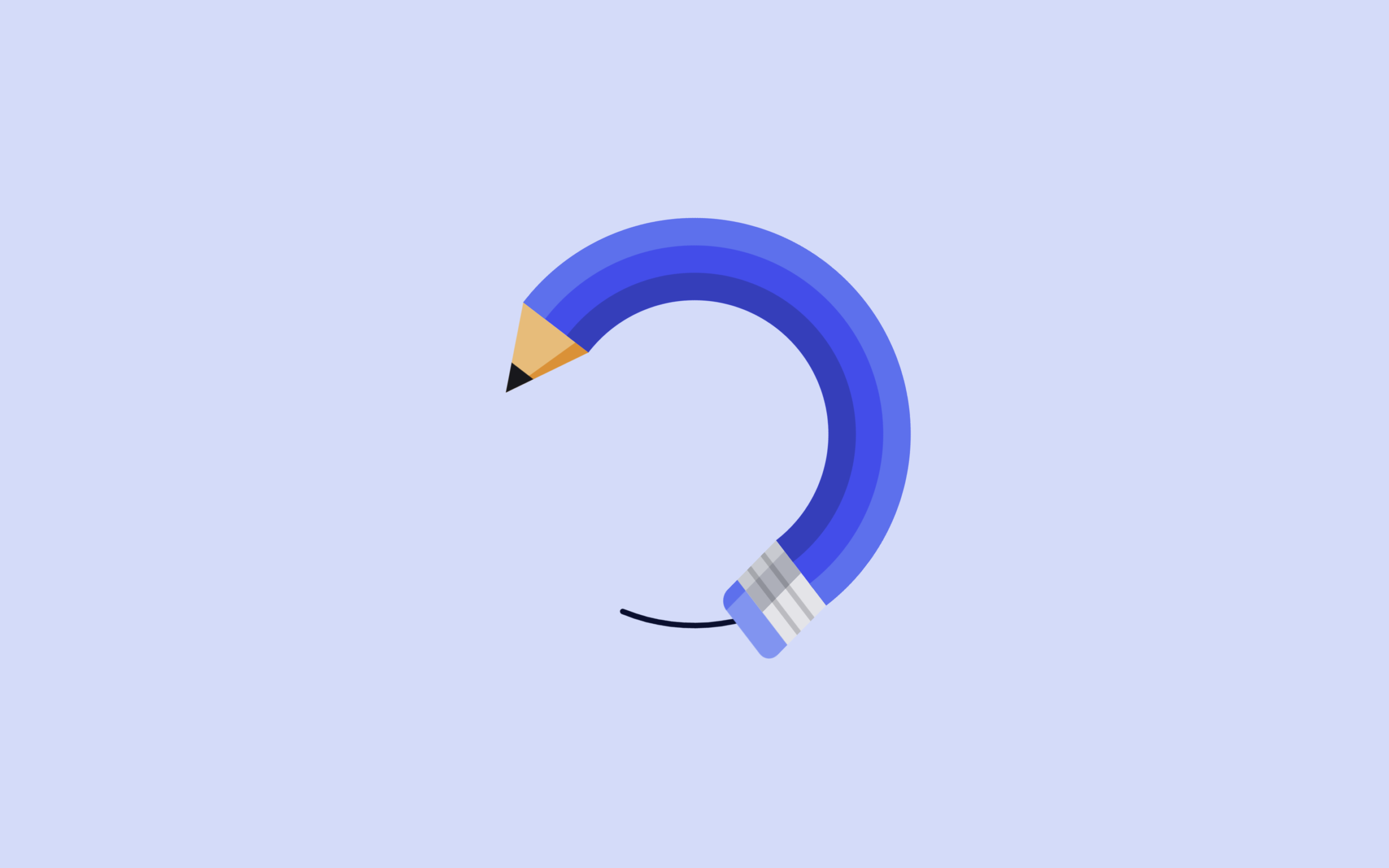

Let’s create a Crazy Pencil Loader using HTML, CSS, and SVG. This project uses SVG shapes to draw a pencil and CSS animations to rotate it, move the eraser and tip, and animate the stroke like it’s drawing in a loop.
We’ll use:
- HTML to structure the SVG pencil.
- CSS to style it and add smooth animations.
This loader is perfect for loading screens to make waiting feel fun and creative. Let’s bring the pencil animation to life.
HTML :
This HTML creates an animated pencil loader using SVG. The circles form the rotating pencil body and stroke, while grouped shapes draw the eraser and pencil tip. CSS (style.css) animates rotations and stroke offsets to make it look like a pencil drawing in a loop.
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <title>Crazy Pencil Loader | @coding.stella</title> <meta name="viewport" content="width=device-width, initial-scale=1, viewport-fit=cover"> <link rel="stylesheet" href="./style.css"> </head> <body> <svg class="pencil" viewBox="0 0 200 200" width="200px" height="200px" xmlns="http://www.w3.org/2000/svg"> <defs> <clipPath id="pencil-eraser"> <rect rx="5" ry="5" width="30" height="30"></rect> </clipPath> </defs> <circle class="pencil__stroke" r="70" fill="none" stroke="currentColor" stroke-width="2" stroke-dasharray="439.82 439.82" stroke-dashoffset="439.82" stroke-linecap="round" transform="rotate(-113,100,100)" /> <g class="pencil__rotate" transform="translate(100,100)"> <g fill="none"> <circle class="pencil__body1" r="64" stroke="hsl(223,90%,50%)" stroke-width="30" stroke-dasharray="402.12 402.12" stroke-dashoffset="402" transform="rotate(-90)" /> <circle class="pencil__body2" r="74" stroke="hsl(223,90%,60%)" stroke-width="10" stroke-dasharray="464.96 464.96" stroke-dashoffset="465" transform="rotate(-90)" /> <circle class="pencil__body3" r="54" stroke="hsl(223,90%,40%)" stroke-width="10" stroke-dasharray="339.29 339.29" stroke-dashoffset="339" transform="rotate(-90)" /> </g> <g class="pencil__eraser" transform="rotate(-90) translate(49,0)"> <g class="pencil__eraser-skew"> <rect fill="hsl(223,90%,70%)" rx="5" ry="5" width="30" height="30" /> <rect fill="hsl(223,90%,60%)" width="5" height="30" clip-path="url(#pencil-eraser)" /> <rect fill="hsl(223,10%,90%)" width="30" height="20" /> <rect fill="hsl(223,10%,70%)" width="15" height="20" /> <rect fill="hsl(223,10%,80%)" width="5" height="20" /> <rect fill="hsla(223,10%,10%,0.2)" y="6" width="30" height="2" /> <rect fill="hsla(223,10%,10%,0.2)" y="13" width="30" height="2" /> </g> </g> <g class="pencil__point" transform="rotate(-90) translate(49,-30)"> <polygon fill="hsl(33,90%,70%)" points="15 0,30 30,0 30" /> <polygon fill="hsl(33,90%,50%)" points="15 0,6 30,0 30" /> <polygon fill="hsl(223,10%,10%)" points="15 0,20 10,10 10" /> </g> </g> </svg> </body> </html>
CSS :
This CSS styles and animates the SVG pencil loader. It centers the pencil, sets colors and sizes, and applies looping animations to each pencil part. Keyframes rotate the pencil, move the eraser and tip, and change stroke dash offsets to create a smooth drawing effect.
* {
border: 0;
box-sizing: border-box;
margin: 0;
padding: 0;
}
:root {
--hue: 223;
--bg: hsl(var(--hue), 90%, 90%);
--fg: hsl(var(--hue), 90%, 10%);
--trans-dur: 0.3s;
font-size: calc(20px + (30 - 20) * (100vw - 320px) / (1280 - 320));
}
body {
background: var(--bg);
color: var(--fg);
font: 1em/1.5 sans-serif;
height: 100vh;
display: grid;
place-items: center;
}
.pencil {
display: block;
width: 10em;
height: 10em;
}
.pencil__body1,
.pencil__body2,
.pencil__body3,
.pencil__eraser,
.pencil__eraser-skew,
.pencil__point,
.pencil__rotate,
.pencil__stroke {
animation-duration: 3s;
animation-timing-function: linear;
animation-iteration-count: infinite;
}
.pencil__body1,
.pencil__body2,
.pencil__body3 {
transform: rotate(-90deg);
}
.pencil__body1 {
animation-name: pencilBody1;
}
.pencil__body2 {
animation-name: pencilBody2;
}
.pencil__body3 {
animation-name: pencilBody3;
}
.pencil__eraser {
animation-name: pencilEraser;
transform: rotate(-90deg) translate(49px, 0);
}
.pencil__eraser-skew {
animation-name: pencilEraserSkew;
animation-timing-function: ease-in-out;
}
.pencil__point {
animation-name: pencilPoint;
transform: rotate(-90deg) translate(49px, -30px);
}
.pencil__rotate {
animation-name: pencilRotate;
}
.pencil__stroke {
animation-name: pencilStroke;
transform: translate(100px, 100px) rotate(-113deg);
}
/* Animations */
@keyframes pencilBody1 {
from,
to {
stroke-dashoffset: 351.86;
transform: rotate(-90deg);
}
50% {
stroke-dashoffset: 150.8;
/* 3/8 of diameter */
transform: rotate(-225deg);
}
}
@keyframes pencilBody2 {
from,
to {
stroke-dashoffset: 406.84;
transform: rotate(-90deg);
}
50% {
stroke-dashoffset: 174.36;
transform: rotate(-225deg);
}
}
@keyframes pencilBody3 {
from,
to {
stroke-dashoffset: 296.88;
transform: rotate(-90deg);
}
50% {
stroke-dashoffset: 127.23;
transform: rotate(-225deg);
}
}
@keyframes pencilEraser {
from,
to {
transform: rotate(-45deg) translate(49px, 0);
}
50% {
transform: rotate(0deg) translate(49px, 0);
}
}
@keyframes pencilEraserSkew {
from,
32.5%,
67.5%,
to {
transform: skewX(0);
}
35%,
65% {
transform: skewX(-4deg);
}
37.5%,
62.5% {
transform: skewX(8deg);
}
40%,
45%,
50%,
55%,
60% {
transform: skewX(-15deg);
}
42.5%,
47.5%,
52.5%,
57.5% {
transform: skewX(15deg);
}
}
@keyframes pencilPoint {
from,
to {
transform: rotate(-90deg) translate(49px, -30px);
}
50% {
transform: rotate(-225deg) translate(49px, -30px);
}
}
@keyframes pencilRotate {
from {
transform: translate(100px, 100px) rotate(0);
}
to {
transform: translate(100px, 100px) rotate(720deg);
}
}
@keyframes pencilStroke {
from {
stroke-dashoffset: 439.82;
transform: translate(100px, 100px) rotate(-113deg);
}
50% {
stroke-dashoffset: 164.93;
transform: translate(100px, 100px) rotate(-113deg);
}
75%,
to {
stroke-dashoffset: 439.82;
transform: translate(100px, 100px) rotate(112deg);
}
}
This Crazy Pencil Loader shows how simple HTML, CSS, and SVG can create a fun animated loader. With smooth rotations and stroke animations, it adds a creative touch to loading screens and makes waiting more engaging.
